LTT Low Temperature Torque Tester For Grease Machine Power ≤1700W

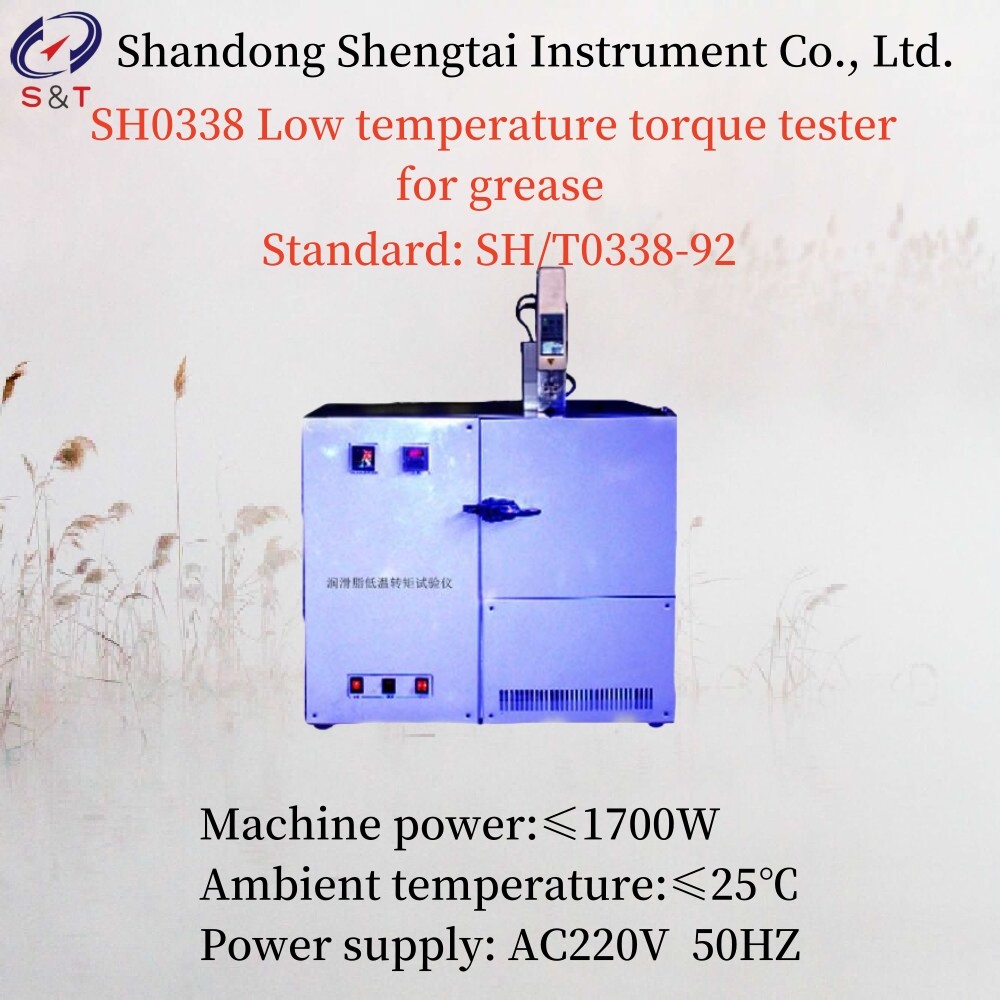

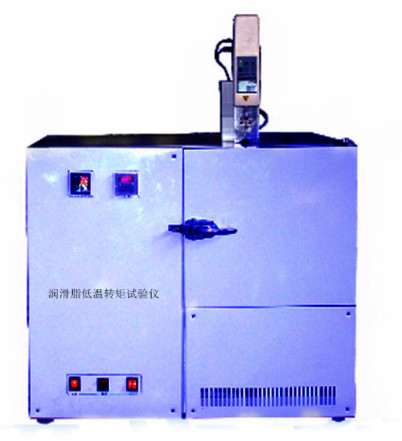

SH0338 Low temperature torque tester for grease

SH0338 Low temperature torque tester is suitable for the determination of low temperature torque of ball bearing grease below -20℃, in line with SH/T0338-92.

The instrument adopts double compressor refrigeration, refrigeration fast, good effect, the instrument simple structure, beautiful appearance, is very suitable for laboratory use.

ASTM D1478 Low Temperature Torque of Ball Bearing Grease Tester

ASTM D 4693 Low Temperature Torque Characteristics Tester for Grease-Lubricated Wheel Bearings

ASTM D4693 Test Equipment for Low-Temperature Torque of Grease-Lubricated Wheel Bearings

ASTM D1478 Low Temperature Torque Test Equipment for Ball Bearing Grease

Performance and Characteristics

1. The instrument adopts imported double compressor for refrigeration, adopts condenser for heat dissipation, and can be refrigerated by connecting the power supply.

2. The instrument adopts imported digital temperature controller for temperature control, and the sensor adopts PT100, which is sensitive to temperature, high resolution, strong anti-interference and high temperature control precision.

3. the instrument cryogenic box part of good sealing, to ensure the internal temperature constant, and keep in the test required temperature conditions.

4.The door part is equipped with a door control switch. When the door is opened during the test, the internal fan stops working to ensure the safety of the operator.

Main technical parameters:

Refrigeration mode: double compressor refrigeration

Stirring method: stirring by motor

Temperature control mode: imported digital display PID temperature control

Temperature control accuracy: ±0.5℃

Operating temperature: normal temperature ～ －60℃

Machine power: ≤1700W

Rated voltage: AC220V±10% 50Hz

Ambient temperature: ≤25℃

Relative humidity: ≤85%RH
