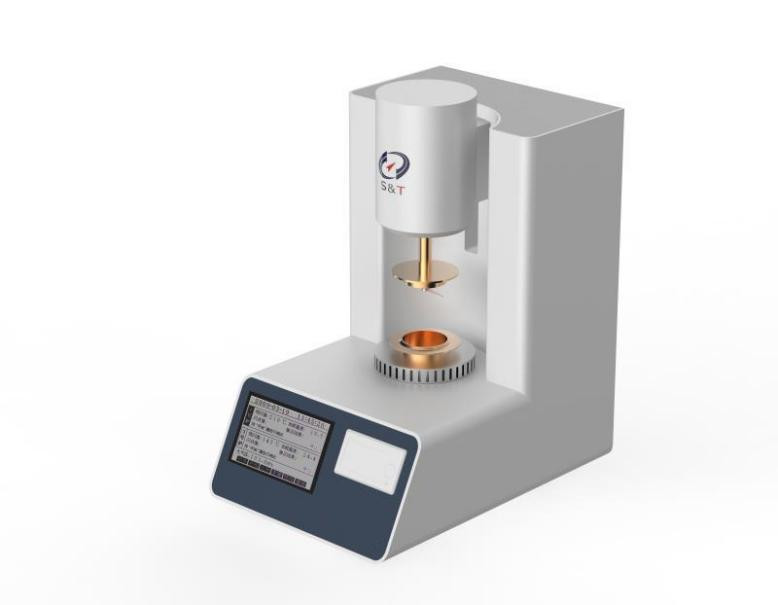

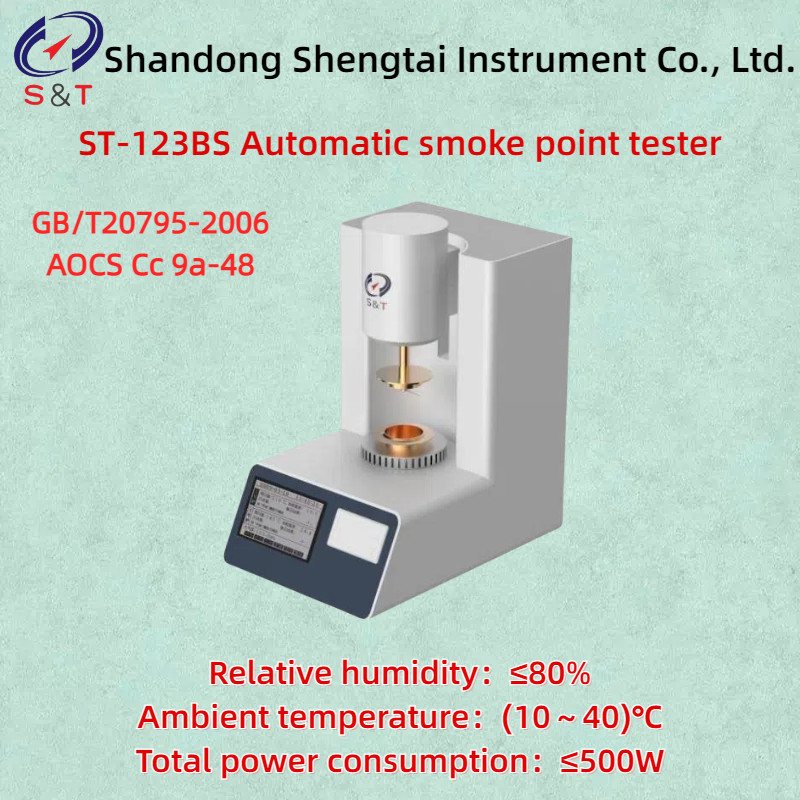

ST-123BS Automatic smoke point tester
ST-123BS Automatic smoke point tester is based on the national standards GB/T20795-2006 " vegetable oil smoking point tester Determination" and AOCS Cc 9a-48 .This instrument adopts LCD screen to display .It can preset smoke point temperature and sample mark number. It has menu that can prompt and guide. It adopts simulation tracking to display the function curve of temperature rising and test time It has the functions of English operation prompt,test date,test time and other parameters. This instrument can automatically detect the smoke point and print test data.The test arm automatically rise up and lower down. Widely used in quality control, import and export inspection, plant oil processing, plant oil storage and transportation, food processing, scientific research, agricultural breeding, the school ,plant oil smoking point testing department and so on.
edible oil smoke point tester vegetable oil smoking point tester
Automatic Determination
Instrument features:
●Touch screen display:7-inch touch screen display
●Heating method:metal bath heating.
●Detection method:Camera photoelectric principle
●Standard micro-printer automatic measurement automatic thermal printing
●Temperature sensor:imported Pt 100 temperature sensor
●Standard micro-printer automatic measurement automatic thermal printing
Major technical parameter:
●Power:AC(220±22)V 50HZ
●Temperature measurement Range:room temperature～400℃
Accuracy:0.1℃
●Heating rate:correspond with GB/T20759；
●Storage method:the experimental results can store 1000sets of historical data for easy query
●Results output:also equipped with U disk output function, output to PC terminal for long-term storage
●Output format:The resulting U disk output format is CSV or excel.
●Data extension:laser printer interface, can link HP1108 laser printer (optional).
●Data protection:with the date password setting function.
●Standard printing:a standard micro-printer for automatic measurement and automatic thermal printing
●Remote upgrade:with TCP network transmission function, can be the software remote upgrade later
●Ambient temperature:(10～40)℃
●Relative humidity:≤80%
●Total power consumption:≤500W
| Name | Automatic plant oil smoke point tester |
| working power supply | AC220V±10% 50HZ |
| Temperature measurement range | room temperature ~ 400℃ |
| Repeatability | ≤2℃ |
| Reproducibility | ≤4℃ |
| Resolution | 0.1℃ |
| Accuracy | 0.5% |
| detection method | Camera principle |
| Using embedded system design | the whole process of test automatic detection; The test results can be stored; It has printing function. |
