SH606 Anti-rust Damp Heat Test Chamber with U-Shaped Heating Tube

SH606 Anti-rust damp heat test chamber

The SH606 rust proof wet heat test chamber is a testing equipment that simulates a humid environment. It can be used by laboratories in industries such as petroleum and chemical, as well as research institutions such as colleges and research institutes, to test and evaluate the performance of grease on metal rust prevention. The inner chamber of the rust proof grease damp heat test chamber is made of 304 stainless steel plate, and the outer shell is treated with (t=1mm) A3 plate spray coating. The heating system uses U-shaped anti-corrosion alloy high-speed heating electric heating tubes for heating, and the connection between the inner and outer chambers is made of metal high and low temperature resistant materials, effectively reducing the temperature.

Meet the standards:

● SH/T 0692-2000 Appendix A (Standard Appendix) Rust proof Oil - Long term Stacked Corrosion Test

● GB-T2361 Test Method for Damp Heat of Antirust Oils and Fats

● SHT0217-1998 rusting degree of rust proof grease test specimen (original ZBE41009 standard)

● SHT0218-1993 Preparation method of test piece for rust proof grease test

● GB12981-2012 Motor Vehicle Brake Fluid Appendix M

Performance characteristics

● The temperature/humidity control instrument adopts a high-precision microcomputer digital integrated controller

● Temperature sensor: dual PT100 platinum resistance thermometer

Control mode: Thermal balance temperature and humidity control mode

● Temperature control adopts PID+S.S.R system coordinated control on the same channel

● The rust proof grease wet heat test chamber has the function of automatic calculation, which can immediately correct the temperature and humidity change conditions, making temperature and humidity control more accurate and stable

Technical parameters:

● Temperature range: Room temperature ～ 80 degrees, freely set

● Humidity range: >95% R.H

● Temperature fluctuation: ≤± 0.5 ℃

● Test water depth: 200mm

● Heating and stabilization time: ≤ 30 minutes

● Test piece rack speed: 1/3 RPM

● Air intake: Fresh air at a rate greater than 3 times that of the box per hour

● Time setting range: 1 ～ 9999 hours

● Studio size: 450 × 450 × 600

● Dimensions: 750 × 750 × 12000

● Weight: 55kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list

anti-rust damp heat test chamber

U-shaped heating tube test chamber

chemical analysis test chamber

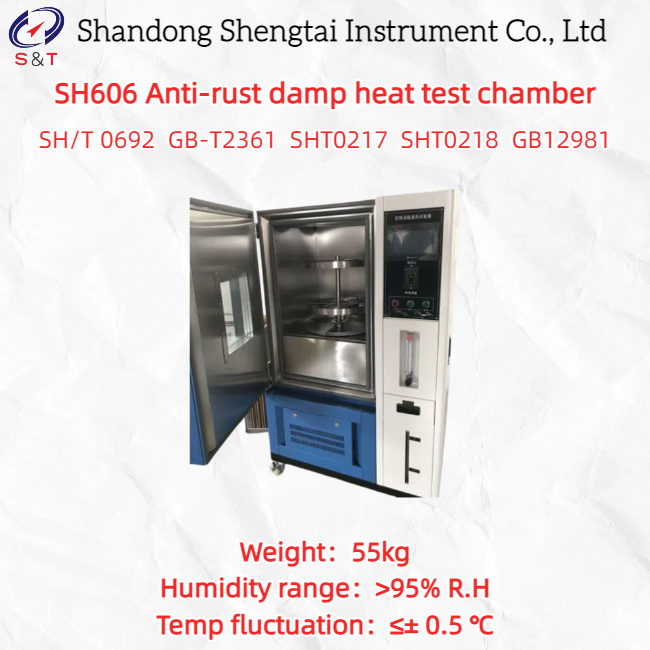

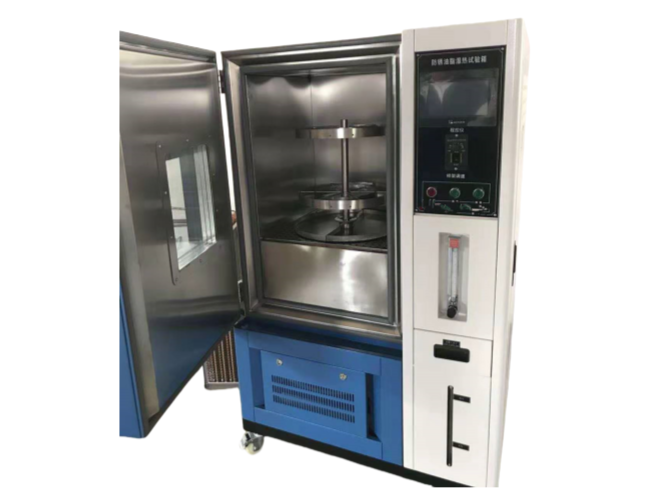

SH606 Anti-rust Damp Heat Test Chamber with U-Shaped Heating Tube Images
