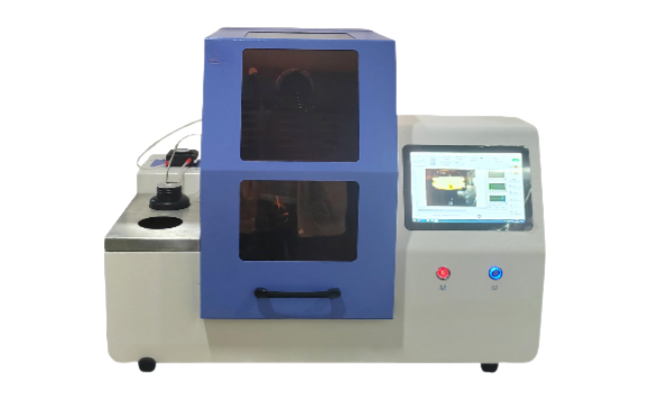

SH12574B Jet Fuel Oil Total Acid Value Tester
The SH12574B automatic jet fuel total acid value analyzer is suitable for measuring the total acid value of jet fuel. It is designed and manufactured strictly in accordance with the GB/T12574 standard, which is applicable to jet fuel with a total acid value range of 0.000-0.100mgKOH/g. Its principle is to use a color indicator to measure the total acid value of jet fuel.
The instrument is a monolithic structure, divided into two independent units: a magnetic stirring device and a nitrogen flow regulating device. The nitrogen flow rate is regulated by a car float flowmeter for stable airflow.
Main features and technical parameters
| Acid value measurement range | 0.000-5.00mgKOH/g |
| Result display accuracy | 0.0001mgKOH/g |
| Judgment method | CCD industrial camera image acquisition, automatic judgment |
| Titration accuracy of titration solution | ± 0.02 ml |
| Injection accuracy of indicator solution | ± 0.01 mL |
| Titration method | high-precision micro pump automatic titration |
| Mixing method | Magnetic stirring |
| Nitrogen flow rate | 10ml/min~1000ml/min |
| Gas source pressure | 0.1-0.3MPa |
| Power supply | AC220V ± 10% 50Hz |
| Power | 0.8KW |
● Acid value measurement range: 0.000-5.00mgKOH/g (wide measurement range)
● Result display accuracy: 0.0001mgKOH/g
● Operating system: Windows and color touch screen are used to display real-time titration process, nitrogen flow rate, and test status.
● Backup observation: Closed glass observation window, transparent observation, safe operation.
● Titration device: The micro pump automatically titrates with reliable accuracy.
● Judgment method: CCD industrial camera image acquisition, automatic judgment
● Intelligent: Automatically complete nitrogen filling, titration, stirring, detection, and calculation.
● Output record: The instrument automatically stores historical records with time stamps for future reference and printing.
● Control mode: Computer automatic control, WINDOWS Chinese operating software, touch control operation
● Titration endpoint: automatically determined by image software
● Titration accuracy of titration solution: ± 0.02 ml
● Injection accuracy of indicator solution: ± 0.01 mL
● Titration method: high-precision micro pump automatic titration
● Mixing method: Magnetic stirring
● Nitrogen flow rate: 10ml/min~1000ml/min, automatic control
● Gas source pressure: 0.1-0.3MPa
● Result processing: automatic processing, generating reports; Real time storage
● Power supply: AC220V ± 10% 50Hz
● Power: 0.8KW
● Operating environment: Laboratory with ventilation and safety protection
| Number | Name | Quantity | Unit | Note |
| 1 | Host | 1 | Unit | |
| 2 | Titration bottle | 1 | Piece | |
| 3 | Magnetic stirrer | 1 | Piece | |
| 4 | Nitrogen connecting pipe | 1 | Root | |
| 5 | P-naphthol benzene indicator | 1 | Bottle | 25g |
| 6 | Burette | 1 | Piece | |
| 7 | Fuse | 2 | Piece | |
| 8 | Power line | 1 | Root | |
| 9 | Instructions | 1 | Copy | |
| 10 | Certificate of conformity | 1 | Copy | |
| 11 | Packing list | 1 | Copy | |
